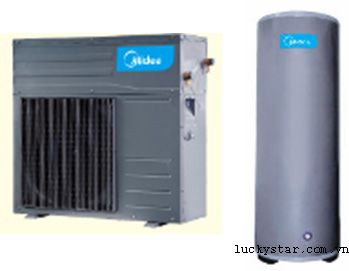

Split Cycle - Heating Type

RSJ-770/S-820

Tình trạng: Còn hàng

Liên hệ đặt hàng: 0978387806 0903449995

Model:RSJ-770/S-820

Giá: Liên hệ

Loại máy: Hệ thống cấp nước nóng Midea

Công suất:

Danh mục: Household Heat Pump Water Heater.

Đặt hàng

Mô tả chi tiết

HPWH SPECIFICATION

Model RSJF-32/R-100(32)XP/A RSJF-32/R-150(32)XP/A RSJF-32/R-200(32)XP/A RSJF-50/R-200(50)XP/A RSJF-50/R-260(50)XP/A

Power supply Ph-v-hz 1-220-50 1-220-50 1-220-50 1-220-50 1-220-50

Water Heating
Capacity         KW 3,2 3,2 3,2 5 5

Input            KW 0,84 0,84 0,84 1,38 1,38

Rated current    A 3,1 4,5 5,5 8,7 8,5

Water Tank Volume L 100 150 200 200 260

Max. input consumption         KW 1,25 1,25 1,25 1,77 1,77

Max. input current A 5,7 5,7 5,7 8,2 8,2

startting current A 21,7 21,7 21,7 27,6 27,6

Compressor

Model PH150X1C-8DZD2 PH150X1C-8DZD2 PH150X1C-8DZD2 PH240X2C-8FTC1 PH240X2C-8FTC1

Type ROTARY ROTARY ROTARY ROTARY ROTARY

Brand TOSHIBA TOSHIBA TOSHIBA TOSHIBA TOSHIBA

Supplier MIDEA-TOSHIBA (Guangdong) MIDEA-TOSHIBA (Guangdong) MIDEA-TOSHIBA (Guangdong) MIDEA-TOSHIBA (Guangdong) MIDEA-TOSHIBA (Guangdong)

Capacity      KW 2,5 2,5 2,5 4,1 4,1

Input           KW 0,82 0,82 0,82 1,28 1,28

Rated current(RLA) A 3,8 3,8 3,8 5,9 5,9

Locked rotor Amp(LRA)    A 21,7 21,7 21,7 27,6 27,6

Thermal protector      OUTER OUTER OUTER INNER INNER

Capacitor       uF 25 25 25 35 35

Refrigerant oil    ml 400 400 400 480 480

outdoor fan motor

Model YDK24-6T2 YDK24-6T2 YDK24-6T2 YDK36-6R YDK36-6R

Brand Welling Welling Welling Welling Welling

Input            KW 0,05 0,05 0,05 0,08 0,08

Capacitor        uF 2,5 2,5 2,5 3,5 3,5

Speed(hi/lo) r/min 860/470 860/470 860/470 775/510 775/510

outdoor coil

a.Number of rows 1 1 1 2 2

b.Tube pitch(a)x row pitch(b)   mm 22X22 22X22 22X22 22X22 22X22

c.Fin spacing                 mm 1,4 1,4 1,4 1,4 1,4

d.Fin type Hydrophilic aluminium Hydrophilic aluminium Hydrophilic aluminium Hydrophilic aluminium Hydrophilic aluminium

e.Tube outer dia.and type mm Ф7.94 innergroove tube Ф7.94 innergroove tube Ф7.94 innergroove tube Ф7.94 innergroove tube Ф7.94 innergroove tube

f.Coil length x height x width   mm 783X484X22 783X484X22 783X484X22 783X484X22 783X484X22

g.Number of circuits 4 4 4 4 4

Outdoor air flow m³/h

Outdoor noise level dB(A) 49 49 49 55 55

Outdoor unit
Dimension (W*H*D) mm 700×525×249 700×525×250 700×525×250 770×535×260 770×535×260

Packing   (W*H*D) mm 825×583×324 825×583×325 825×583×325 910×590×365 910×590×365

Net/Gross weight   kg 28/30 28/30 28/30 40/44 40/44

Refrigerant type/Quantity                kg R22/0.87 R22/0.87 R22/0.87 R22/1.85 R22/1.85

Design pressure              MPa 2.65/0.55 2.65/0.55 2.65/0.55 2.65/0.55 2.65/0.55

Refrigerant piping
Liquid/ Gas side mm φ6.35/φ9.53 φ6.35/φ9.53 φ6.35/φ9.53 φ6.35/φ12.7 φ6.35/φ12.7

Max. pipe length    m 8 8 8 8 8

Max. difference in level        m 3 3 3 3 3

Ambient temp ℃ -7℃-43℃ -7℃-43℃ -7℃-43℃ -7℃-43℃ -7℃-43℃

water pipe Diameter, water inlet pipe mm DN15 DN15 DN15 DN15 DN15

Diameter, water outlet pipe mm DN15 DN15 DN15 DN15 DN15

Wire Controller KJR-17B/B KJR-17B/B KJR-17B/B KJR-17B/B KJR-17B/B

Hot Water Yield m3/h 0,07 0,07 0,07 0,11 0,11

Water outlet temp. ℃ 50℃(default), adjustable between 40℃ to 55℃

Remark:

1. The test conditions: outdoor temp. 20/15℃(DB/WB), inlet water temp. 15℃, outlet water temp. 55℃.

2. The operation range:-7℃-43℃.

3. The specification may be changed for product improvement, please refer to the nameplate.
