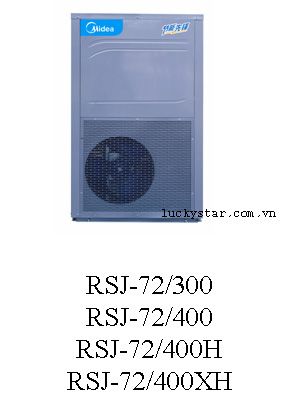

Intergrative Direct - heating Type

Mô tả chi tiết

HPWH SPECIFICATION
Model			RSJ-72/400	RSJ-72/400H	RSJ-72/400XH
Power supply		Ph-v-hz
Water Heating	Capacity	KW	7,2	7,2	7,2
	Input	KW	1,87	1,87	1,87
	Rated current	A	12,5	12,5	12,5
Max. input consumption		KW	3,2	3,2	3,2
Max. input current		A	14	14	14
startting current		A	39	39	39
Compressor	Model		PH340X2CS-8KUC1	PH340X2CS-8KUC1	PH340X2CS-8KUC1
	Type		HERMETIC MOTOR COMPRESSOR	HERMETIC MOTOR COMPRESSOR	HERMETIC MOTOR COMPRESSOR
	Brand		MIDEA TOSHIBA	MIDEA TOSHIBA	MIDEA TOSHIBA
	Supplier		MIDEA TOSHIBA	MIDEA TOSHIBA	MIDEA TOSHIBA
	Capacity	KW	5,86	5,86	5,86
	Input	KW	1,7	1,7	1,7
	Rated current(RLA)	A	9	9	9
	Locked rotor Amp(LRA)	A	39	39	39
	Thermal protector		INNER	INNER	INNER
	Capacitor	uF	45	45	45
	Refrigerant oil	ml	750	750	750
outdoor fan motor	Model		YDK65-6N	YDK65-6N	YDK65-6N
	Brand		Welling	Welling	Welling
	Input	KW	0,065	0,065	0,065
	Capacitor	uF	3	3	3
	Speed(hi/lo)	r/min	830/450	830/450	830/450
outdoor coil	a.Number of rows		2	2	2
	b.Tube pitch(a)x row pitch(b)	mm	25.4X22	25.4X22	25.4X22
	c.Fin spacing	mm	1,8	1,8	1,8
	d.Fin type		Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outer dia.and type	mm	Ф9.52 innergroove tube	Ф9.52 innergroove tube	Ф9.52 innergroove tube
	f.Coil length x height x width	mm
	g.Number of circuits		6	6	6
Outdoor air flow		m3/h
Outdoor noise level		dB(A)	55	58	58
Outdoor unit	Dimension (W*H*D)	mm	900*1440*530	900*1440*530	900*1440*530
	Packing   (W*H*D)	mm	1035*1550*635	1035*1550*635	1035*1550*635
	Net/Gross weight	kg	134/140	148/154	150/156
Refrigerant type/Quantity		Kg	R22/1.0	R22/1.0	R22/1.0
Design pressure		MPa	2,6	2,6	2,6
Refrigerant piping	Liquid/ Gas side	mm(inch)	Ф9.52/Ф12.7	Ф9.52/Ф12.7	Ф9.52/Ф12.7
	Max. pipe length	m	5	5	5
	Max. difference in level	m	3	3	3
Ambient temp		℃	(-7~43)	(-7~43)	(-7~43)
water  pipe	Diameter, water inlet pipe	mm	DN15	DN20	DN20
	Diameter, water outlet pipe	mm	DN15	DN20	DN20
	Diameter, circulating water pipe	mm			DN20
Hot water flowing		m3/h	0,16	0,16	0,16
Wire controller			KJR-13B	KJR-13B	KJR-13B
Remark:
1. The test conditions: outdoor temp. 20/15℃(DB/WB), inlet water temp. 15℃, outlet water temp. 55℃.
2. The operation range:-7℃-43℃.
3. The specification may be changed for product improvement, please refer to the nameplate.
