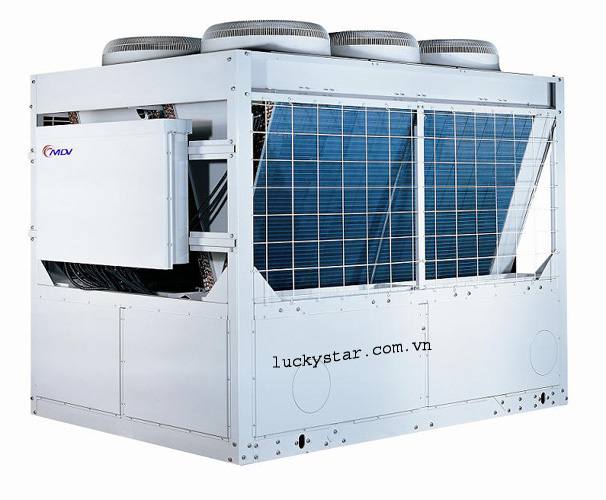

Middle-temperature Cycle-heating Type

Mô tả chi tiết

RSJ M/S Model

HPWH SPECIFICATION
Model			RSJ-450/MS-820	RSJ-900/MS-820	RSJ-2400/MS-820
Power supply		Ph-v-hz	3-380-50	3-380-50	3-380-50
Cooling	Capacity	KW	30,0	65,0	168,0
	Input	KW	10,0	21,7	54,5
	Rated current	A	19,0	38,0	91,0
Heating	Capacity	KW	32,0	70,0	176,0
	Input	KW	9,8	20,8	52,5
	Rated current	A	18,5	37,5	90,0
Water Heating	Capacity	KW	45,0	90,0	240,0
	Input	KW	10,9	21,8	57,1
	Rated current	A	19,1	38,2	91,9
Max. input consumption		KW	14,7	27,2	81,0
Max. input current		A	23,6	45,6	130,3
startting current		A	63 / 69	63 / 69	63 / 69
Compressor	Model		C-SB453H8A	C-SB453H8A	C-SB453H8A
	Type		SCROLL	SCROLL	SCROLL
	Brand		SANYO	SANYO	SANYO
	Supplier		DSA	DSA	DSA
	Capacity	KW	21,5	21,5	21,5
	Input	KW	4,5	4,5	4,5
	Rated current(RLA)	A	8,0	8,0	8,0
	Locked rotor Amp(LRA)	A	9,7	9,7	9,7
	Thermal protector	℃	135,0	135,0	135,0
	Capacitor	uF	25,0	25,0	25,0
	Refrigerant oil		SUNISO 4GSD	SUNISO 5GSD	SUNISO 6GSD
outdoor fan motor	Model		YDK400-8（WL）	YDK400-8（WL）	YDK400-8（WL）
	Brand		welling	welling	welling
	Input	W	670×1	670×1	670×1
	Capacitor	uF	25,0	25,0	25,0
	Speed(hi/lo)	r/min	670/550	670/550	670/550
outdoor coil	a.Number of rows		3,0	3,0	3,0
	b.Tube pitch(a)x row pitch(b)	mm	25.4X22	25.4X22	25.4X22
	c.Fin spacing	mm	1,8	1,8	1,8
	d.Fin type		Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outer dia.and type	mm	Ф9.52 innergroove tube	Ф9.52 innergroove tube	Ф9.52 innergroove tube
	f.Coil length x height x width	mm	850×508×22	850×508×22	850×508×22
	g.Number of circuits		10,0	10,0	10,0
Outdoor air flow		m3/h	12000,0	24000,0	7800,0
Outdoor noise level		dB(A)	60,0	60,0	68,0
Outdoor unit	Dimension (W*H*D)	mm	1514×1820×850	2492×1820×850	3100×1840×2320
	Packing   (W*H*D)	mm	1580×2015×995	2575×2015×995	3240×2180×2590
	Net/Gross weight	kg	440/455	700/715	2720/2735
Refrigerant type/Quantity		Kg	R22/4×2	R22/4×4	R22 70
Design pressure		MPa	2.65/0.55	2.65/0.55	2.65/0.55
Refrigerant piping	Liquid/ Gas side	mm(inch)	φ12.7/φ22	φ12.7/φ22	φ12.7/φ22
	Max. pipe length	m	无	无	无
	Max. difference in level	m	参考水泵扬程	参考水泵扬程	参考水泵扬程
Ambient temp		℃	（-7~43）	（-7~43）	（-7~43）
water  pipe	Diameter, water inlet pipe	mm	DN125	DN125	DN100
	Diameter, water outlet pipe	mm	DN125	DN125	DN100
Hot Water Yield		m3/h	60,0	60,0	68,0
Wire controller			KJR-08B	KJR-08B	KJR-08B
Outwater Temp		℃	（default）50℃，40℃～55℃	（default）50℃，40℃～55℃	（default）50℃，40℃～55℃
Remark:
1. The test conditions: outdoor temp. 20/15℃(DB/WB), inlet water temp. 15℃, outlet water temp. 55℃.
2. The operation range:-7℃-43℃.
3. The specification may be changed for product improvement, please refer to the nameplate.
