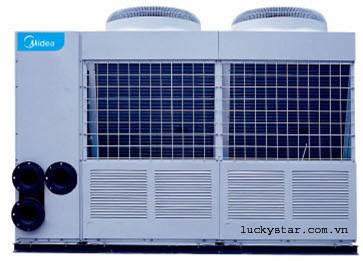

High-Temperature Direct- heating Type

Mô tả chi tiết

RSJ Model

HPWH SPECIFICATION
Model			RSJ-100-540V	RSJ-200/S-540V	RSJ-380/S-820	RSJ-770/S-820
Power supply		Ph-v-hz	3-220-50/60	3-380-50/60	3-380-50/60	3-380-50/60
Water Heating	Capacity	KW	10,0	20,0	38,2	77,0
	Input	KW	2,5	4,7	8,7	17,4
	Rated current	A	11,6	7,8	14,0	28,0
Max. input consumption		KW	3,9	6,2	12,2	24,4
Max. input current		A	17,7	11,0	19,0	42,0
startting current		A	75/82	60/67	60/67	60/67
Compressor	Model		ZR34KH-PFJ-522	ZR61KH-TFD-522	ZR61KC-TFD-420	ZR61KC-TFD-420
	Type		SCROLL	SCROLL	SCROLL	SCROLL
	Brand		COPELAND	COPELAND	COPELAND	COPELAND
	Supplier		EMERSON	EMERSON	EMERSON	DSA
	Capacity	KW	8,2	15,0	15,0	21,5
	Input	KW	2,5	4,5	4,5	4,5
	Rated current(RLA)	A	13,6	7,8	7,8	8,0
	Locked rotor Amp(LRA)	A	75/82	60/67	60/67	9,7
	Thermal protector	℃	135	140	140	140
	Capacitor	uF	12μF/450V	12μF/450V	25μF/440-450V	25μF/440-450V
	Refrigerant oil		SONTEX 200LT	SONTEX 200LT	SONTEX 200LT	SUNISO 6GSD
outdoor fan motor	Model		YDK140-6N	YDK220-6R	YDK400-8-YA	YDK400-8（WL）
	Brand		welling	changzhouyongan	welling	welling
	Input	W	270×1	400×1	600×1	600×2
	Capacitor	uF	12,0	12,0	25,0	25,0
	Speed(hi/lo)	r/min	735 / 530	670/550	670/550	670/550
outdoor coil	a.Number of rows		1,0	2,0	3×2	3×2
	b.Tube pitch(a)x row pitch(b)	mm	25.4X0	25.4X22	25.4X22	25.4X22
	c.Fin spacing	mm	1,8	1,8	1,8	1,8
	d.Fin type		Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium	Hydrophilic aluminium
	e.Tube outer dia.and type	mm	Ф9.52 innergroove tube	Ф9.52 innergroove tube	Ф9.52 innergroove tube	Ф9.52 innergroove tube
	f.Coil length x height x width	mm	1378×1016×22	1378×1018×44	1378×1018×46	850×508×22
	g.Number of circuits		8	8	12	10
Outdoor air flow		m3/h
Outdoor noise level		dB(A)	56	58	62	62
Outdoor unit	Dimension (W*H*D)	mm	750×1100×750	750×1100×750	992×1750×893	2506×1815×960
	Packing   (W*H*D)	mm	770×1160×770	770×1160×770	1075×1920×920	2575×2015×995
	Net/Gross weight	kg	121 / 129	145 / 152	285 / 292	680 / 710
Refrigerant type/Quantity		Kg	R22/R407C 1.6	R22/R407C 2.8	R22/R407C 5	R22/R407C 10
Design pressure		MPa	2.65/0.55	2.65/0.55	2.65/0.55	2.65/0.55
Refrigerant piping	Liquid/ Gas side	mm(inch)	φ12.7/φ19	φ12.7/φ19	φ12.7/φ28.6	φ12.7/φ28.6
	Max. difference in level	m	参考水泵扬程	参考水泵扬程	参考水泵扬程	参考水泵扬程
Ambient temp		℃	（-7~43）	（-7~43）	（-7~43）	（-7~43）
water  pipe	Diameter, water inlet pipe	mm	DN25	DN25	DN25	DN65
	Diameter, water outlet pipe	mm	DN25	DN25	DN32	DN65
Hot Water Yield		m3/h	0,26	0,52	1,0	2,0
Wire controller			KJR-16B	KJR-16B	KJR-16B	KJR-16B
Outwater Temp		℃	（default）56℃，48℃～60℃	（default）56℃，48℃～60℃	（default）56℃，48℃～60℃	（default）56℃，48℃～60℃
Remark:
1. The test conditions: outdoor temp. 20/15℃(DB/WB), inlet water temp. 15℃, outlet water temp. 55℃.
2. The operation range:-7℃-43℃.
3. The specification may be changed for product improvement, please refer to the nameplate.
