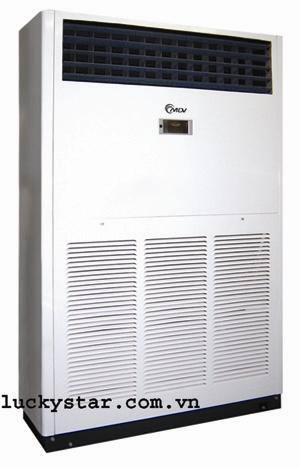

FLOOR STANDING

Mô tả chi tiết

Model			MFA-76CR	MFA-96CR	MFA-76HR	MFA-96HR
Power supply		V- Ph-Hz	220-240～1～50		220-240～1～50
Cooling	Capacity	Btu/h	76000	96000	76000	96000
	Input	W	8100	10000	8100	10200
	Rated current	A	14,7	16,5	14,7	16,7
Heating	Capacity	Btu/h	/	/	83600	105600
	Input	W	/	/	8000	9800
	Rated current	A	/	/	14,5	16,3
Indoor fan motor	Model		YSK300-6	YSK300-6	YSK300-6	YSK300-6
	Type		Ac Motor	Ac Motor	Ac Motor	Ac Motor
	Brand		Welling	Welling	Welling	Welling
	Input	W	590/475/412	590/475/412	590/475/412	590/475/412
	Capacitor	uF	25	25	25	25
	Speed (hi/mid/lo)	r/min	870/780/700	870/780/700	870/780/700	870/780/700
Indoor coil	Number of rows		3	3	3	3
	Tube pitch(a)x row pitch(b)	mm	25.4×22	25.4×22	25.4×22	25.4×22
	Fin spacing	mm	1,6	1,6	1,6	1,6
	Fin type		hydrophilic actuate fin alum inurn foil		hydrophilic actuate fin alum inurn foil
	Tube outside dia. and type	mm	Ф9.53	Ф9.53	Ф9.53	Ф9.53
			innergroove tube	innergroove tube	innergroove tube	innergroove tube
	Coil length x height x width	mm	982×710×66	982×710×66	982×710×66	982×710×66
	Number of circuits		14	14	14	14
Indoor air flow (H/M/L)		m3/h	3900/3500/3200	3900/3500/3200	3900/3500/3200	3900/3500/3200
Indoor noise level (Hi/Mid/Lo)		dB(A)	45/43/41	45/43/41	45/43/41	45/43/41
Indoor unit	Dimension (WxHxD)	mm	1200×1860×420	1200×1860×420	1200×1860×420	1200×1860×420
	Net/Gross weight	kg	158/174	158/174	158/174	158/174
Refrigerant type			R22	R22	R22	R22
Throttle			Capillary		Capillary
Design pressure		MPa	2.6/1.0	2.6/1.0	2.6/1.0	2.6/1.0
Refrigerant piping	Liquid side/ Gas side	mm(inch)	Ф9.53/19	Ф9.53/19	Ф9.53/Ф19	Ф9.53/Ф19
	Max. refrigerant pipe length	m	30	30	30	30
	Max. difference in level	m	20	20	20	20
Connecting wiring	Power wiring	mm2	3×2.5	3×2.5	3×2.5	3×2.5
	Signal wiring	mm2	3×1.0	3×1.0	4×1.0	4×1.0
Drainage water pipe dia.		mm	Ф41	Ф41	Ф41	Ф41
Controller			Wireless remote controller (R51/CE) (standard)		Wireless remote controller (R51/E) (standard)
Operation temp		℃	17～30	17～30	17～30	17～30
Application area		m2	80～120	100～150	80～120	100～150
