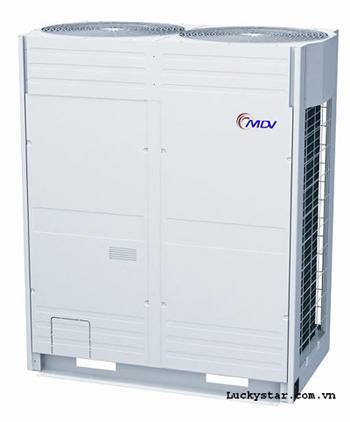

Digital Outdoor unit

Mô tả chi tiết

Model					MDV-D100W	MDV-D140W/S	MDV-D280W/S-810	MDV-D280W/S-820	MDVD560W/S-820	MDVD840W/S-820
Power supply				Ph-V-Hz	220-240V, 50Hz	3N~,380V, 50Hz	3N~, 380V, 50Hz	3N~,380V, 50Hz	3N~, 380V, 50Hz	3N~, 380V, 50Hz
Capacity			Cooling (*1)	KW	11	14	29	29	60	91
			Input	KW	3,5	4,6	9,1	9,1	19,2	28
			Heating (*2)	KW	12	16	30	30	67,2	105
			Input	KW	3,4	4,5	8,9	8,9	18,9	27,7
Compressor			Model		ZRD48KC-TFD-532	ZRD61KC-TFD-532	ZRD72KC-TFD-433/	ZRD72KC-TFD-433/	ZRD72KC-TFD-433/	ZRD72KC-TFD-433/
							ZR61KC-TFD-420	ZR61KC-TFD-420	ZR61KC-TFD-420	ZR61KC-TFD-420
			Type		DIGITAL SCROLL	DIGITAL SCROLL	DIGITAL SCROLL	DIGITAL SCROLL	Digital scroll	Digital scroll
			Brand		COPELAND	COPELAND	COPELAND	COPELAND	COPELAND	COPELAND
			Capacity	KW	11,4	14	32,2	32,2	61,3	90,4
			Rated current (RLA)	A	20	8,5	18,5	18,5	35,9	53,3
			Thermal protector		Inner	Inner	Inner	Inner	Inner	Inner
			Refrigerant oil	ml	1800	1800	3600	3600	7600	11400
Outdoor fan motor			Model		YDK250-6D	YDK250-6D	YDK200-6	YDK400-8	YDK400-8	YDK400-8
			Input  (H/L)	W	307	307	440x2/270x2	700/450	700X2/450X2	700X3/450X3
			Capacitor	uF	10	10	10	10	10	10
			Speed	r/min	740	740	890/540	670/450	670/450	670/450
Outdoor coil			a. Number of rows		2	2	2	2,5	2,5	2,5
			b. Tube pitch(a)x row pitch(b)	mm	25.4X22	25.4X22	25.4X22	25.4X22	25.4X22	25.4X22
			c. Fin spacing	mm	1,7	1,7	1,7	1,8	1,8	1,8
			d. Fin type (code)		HYDROPHILIC ALUMINIUM	HYDROPHILIC ALUMINIUM	HYDROPHILIC ALUMINIUM	HYDROPHILIC ALUMINIUM	HYDROPHILIC ALUMINIUM	HYDROPHILIC ALUMINIUM
			e. Tube outside dia.and type	mm	Ф9.53  INNERGROOVE TUBE	Ф9.53  INNERGROOVE TUBE	Ф9.53  INNERGROOVE TUBE	Ф9.53  INNERGROOVE TUBE	Ф9.53  INNERGROOVE TUBE	Ф9.53  INNERGROOVE TUBE
			f. Coil length x height x width	mm	955*915*22	955*915*22	2230*1220*44	870*980*60	870*980*60	870*980*60
			g. Number of circuits		8	8	3X4	10*2	10X4	10X6
Outdoor air flow				m3/h	5000	5000	11000	10000	20000	30000
Outdoor noise level (*3)				dB(A)	54	54	68	58	70	72
Outdoor unit	Dimension (W*H*D)			mm	990*960*360	990*960*360	1290X1540X750	997*1830*880	1992*1920*880	2987*1920*880
	Packing  (W*H*D)			mm	1120*1015*435	1120*1015*435	1360X1720X820	1105*2020*1034	2110*2120*1034	3105*2120*1034
	Net/Gross weight			kg	101/106	101/106	315/320	245/260	580/600	800/855
Refrigerant type R22				kg	2,7	3	12	11	24	36
Design pressure         (low/high)				MPa	1.3/3.0	1.2/2.8	1.2/3.5	1.3/3.3	1.3/3.3	1.3/3.3
Refrigerant piping		Liquid side/ Gas side		mm	Φ9.53/Φ19	Φ9.53/Φ19	12.7/28.6	12.7/28.6	19.0/38.0	22.0/45.0
		Max. Refrigerant pipe length		m	50	70	150	150	150	150
		Max. Difference in level		m	8	8	15	15	15	15
Qty per 20’/40’/40’HQ    Pieces					50/100/100	50/100/100	8/16/16	10/20/20	4,10,10	2,6,6
